Envoy Proxy & EPIC
The proxy component of an EPIC gateway uses the Envoy Proxy. Each Gateway consists of one or more managed Envoy instances providing redundancy and scale. EPIC configurations provide complete access to the native Envoy configuration and all of Envoy’s features.
graph LR
style A1 fill:#6633FF,color:#fff
style A2 fill:#6633FF,color:#fff
A1[Envoy Proxy Instance] --- B
A2[Envoy Proxy Instance] --- B
A1 --- C
A2 --- C
B[Primary Controller] --- D
C[Endpoint Controller] --- D
D[EPIC API Access] --- E
E[Gateway Controller]
subgraph EPIC
style EPIC fill: #00CC00
A1
A2
B
C
D
subgraph Gateway
style Gateway fill:#006600,color:#fff
A1
A2
end
end
subgraph k8s-Cluster
style k8s-Cluster fill:#6699ff,color:#fff
E
endGateways are created on demand by the Gateway Controller installed in the cluster. A gatewayClassConfig/gatewayClass specifies the gateway configuration that will be created in EPIC when a Gateway object referencing a GatewayClass is created. In each gatewayClassConfig a gateway template is defined, this provides the blueprint for the gateway to be created.
Controllers
Each user account has its own Envoy configuration controllers. There is a primary controller that creates a gateway from a template, and second controller that provides EndPoint information. This mirrors the behavior of the GatewayAPI where a Gateway is created separately from Routes. Gateways are relatively long lived objects while Endpoints can be changed often based upon scaling application PODs in clusters.
Envoy gateway templates & configurations
The templates and resulting gateway configurations include Envoy configurations, not an abstraction of the Envoy configuration. This allows any feature in any release of Envoy to be used to create an EPIC Gateway.
Envoy Versions
EPIC can host a your specific version and/or build of Envoy that contains only the filters and extension required for your use case.An operational gateway configuration has the same structure as a template and can be edited dynamically affecting all instances of the operational gateway
apiVersion: epic.acnodal.io/v1
kind: GWProxy
spec:
clientRef:
clusterID: upstream-private
name: uswest-gtwapi
namespace: demoapi
uid: ff2ac5e8-beed-4181-96cb-244dbd104ae9
display-name: uswest-gtwapi
endpoints:
- dnsName: uswest-gtwapi-demoapi-epictest-uswest.epick8sgw.net
recordTTL: 180
recordType: A
targets:
- 72.52.101.1
envoy-replica-count: 1
envoy-template:
envoyAPI: v3
envoyResources:
clusters:
- name: SET_BY_EPIC
value: |
name: {{.ClusterName}}
connect_timeout: 2s
type: EDS
eds_cluster_config:
eds_config:
resource_api_version: V3
api_config_source:
api_type: GRPC
transport_api_version: V3
grpc_services:
- envoy_grpc:
cluster_name: eds-server
lb_policy: ROUND_ROBIN
health_checks:
- interval: 5s
timeout: 5s
no_traffic_interval: 5s
unhealthy_threshold: 3
healthy_threshold: 3
tcp_health_check: {}
endpoints:
- name: SET_BY_EPIC
value: |
cluster_name: {{.ClusterName}}
{{- if .Endpoints}}
endpoints:
- lb_endpoints:
{{- range .Endpoints}}
- endpoint:
address:
socket_address:
address: {{.Spec.Address}}
protocol: {{.Spec.Port.Protocol | ToUpper}}
port_value: {{.Spec.Port.Port}}
{{- end}}
{{- end}}
listeners:
- name: SET_BY_EPIC
value: |
name: {{.PortName}}
address:
socket_address:
address: "::"
ipv4_compat: yes
port_value: {{.Port}}
protocol: {{.Protocol | ToUpper}}
filter_chains:
- filters:
- name: envoy.http_connection_manager
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: {{ .ServiceName }}
server_name: epicuswest
add_user_agent: true
use_remote_address: true
via: epicuswest
route_config:
name: local_route
virtual_hosts:
{{- range .Routes }}
{{- $route := .Spec.HTTP }}
{{- range $route.Hostnames | HostnameOrDefault }}
- name: "{{ . }}"
domains:
- "{{ . }}"
{{- if $route.Rules}}
routes:
{{- range $route.Rules}}
{{- $rule := . }}
{{- if .Matches }}
{{- range .Matches }}
- route:
weighted_clusters:
clusters:
{{- range $rule.BackendRefs}}
- name: {{ .Name }}
weight: {{ .Weight }}
{{- end }}
total_weight: {{ $rule.BackendRefs | RefWeightsTotal }}
match:
{{- if .Path.Type | PathTypePathPrefix }}
prefix: "{{ .Path.Value }}"
{{- end }}
{{- if .Path.Type | PathTypeExact }}
path: "{{ .Path.Value }}"
{{- end }}
{{- if .Headers }}
headers:
{{- range .Headers }}
- name: "{{ .Name }}"
string_match:
{{- if .Type | HeaderTypeRegex }}
safe_regex:
google_re2: {}
regex: "{{ .Value }}"
{{- else }}
exact: "{{ .Value }}"
{{- end }}
{{- end }}
{{- end }}
{{- end }}
{{- end }}
{{- end }}
{{- end }}
{{- end }}
{{- end }}
http_filters:
- name: envoy.filters.http.bandwidth_limit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.bandwidth_limit.v3.BandwidthLimit
stat_prefix: bandwidth_limiter_default
enable_mode: REQUEST_AND_RESPONSE
limit_kbps: 1000
fill_interval: 0.1s
- name: envoy.filters.http.router
transport_socket:
name: envoy.transport_socket.tls
typed_config:
"@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.DownstreamTlsContext
common_tls_context:
tls_certificate_sds_secret_configs:
- name: wildcard-https-cert
sds_config:
resource_api_version: V3
ads: {}
secrets:
- name: wildcard-https-cert
ref:
name: wildcard-epick8sgw-net-tls
namespace: epic-epictest
The Envoy resource and template structure mirrors a native Envoy configuration with Clusters, Endpoints, Listeners and Secrets. In addition, the configuration includes Go templates ( {{- }} ) used to dynamically update the configuration from changes such as endpoints and httpRoutes from the cluster. The gateway above was created from the default gatewayhttps template that is loaded on account creation.
Envoy Configuration validation and version control
The reason most implementations hide Envoy’s native configuration interface is that it can be complex and error prone resulting in non-operational proxy engines. The Configuration Controller alleviates this problem by checking the configuration before it’s applied to the proxy engines. If the configuration fails verification, the existing configuration is left in place and the failing configuration is marked. The Configuration Controller also stores previous versions to assist in version control.
The Envoy component of the configuration, as applied to each of the Envoy proxies can be viewed. In this case the Go Templates viewed in the Template and Gateway configuration are completed with updates from the Endpoint controller.
apiVersion: marin3r.3scale.net/v1alpha1
kind: EnvoyConfig
spec:
envoyAPI: v3
envoyResources:
clusters:
- name: 34bd6bef-029e-4c80-89fc-23ccb817e62f
value: |
name: 34bd6bef-029e-4c80-89fc-23ccb817e62f
connect_timeout: 2s
type: EDS
eds_cluster_config:
eds_config:
resource_api_version: V3
api_config_source:
api_type: GRPC
transport_api_version: V3
grpc_services:
- envoy_grpc:
cluster_name: eds-server
lb_policy: ROUND_ROBIN
health_checks:
- interval: 5s
timeout: 5s
no_traffic_interval: 5s
unhealthy_threshold: 3
healthy_threshold: 3
tcp_health_check: {}
- name: 70196186-404f-442e-b5ac-6e563620e56c
value: |
name: 70196186-404f-442e-b5ac-6e563620e56c
connect_timeout: 2s
type: EDS
eds_cluster_config:
eds_config:
resource_api_version: V3
api_config_source:
api_type: GRPC
transport_api_version: V3
grpc_services:
- envoy_grpc:
cluster_name: eds-server
lb_policy: ROUND_ROBIN
health_checks:
- interval: 5s
timeout: 5s
no_traffic_interval: 5s
unhealthy_threshold: 3
healthy_threshold: 3
tcp_health_check: {}
- name: 7d45bae8-77e8-4858-bf89-3e8111d2fd14
value: |
name: 7d45bae8-77e8-4858-bf89-3e8111d2fd14
connect_timeout: 2s
type: EDS
eds_cluster_config:
eds_config:
resource_api_version: V3
api_config_source:
api_type: GRPC
transport_api_version: V3
grpc_services:
- envoy_grpc:
cluster_name: eds-server
lb_policy: ROUND_ROBIN
health_checks:
- interval: 5s
timeout: 5s
no_traffic_interval: 5s
unhealthy_threshold: 3
healthy_threshold: 3
tcp_health_check: {}
listeners:
- name: TCP-443
value: |
name: TCP-443
address:
socket_address:
address: "::"
ipv4_compat: yes
port_value: 443
protocol: TCP
filter_chains:
- filters:
- name: envoy.http_connection_manager
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
stat_prefix: ff2ac5e8-beed-4181-96cb-244dbd104ae9
server_name: epicuswest
add_user_agent: true
use_remote_address: true
via: epicuswest
route_config:
name: local_route
virtual_hosts:
- name: "*"
domains:
- "*"
routes:
- route:
weighted_clusters:
clusters:
- name: 7d45bae8-77e8-4858-bf89-3e8111d2fd14
weight: 1
total_weight: 1
match:
prefix: "/api"
headers:
- name: "epic"
string_match:
exact: "dev1"
- route:
weighted_clusters:
clusters:
- name: 34bd6bef-029e-4c80-89fc-23ccb817e62f
weight: 1
total_weight: 1
match:
prefix: "/api"
- route:
weighted_clusters:
clusters:
- name: 70196186-404f-442e-b5ac-6e563620e56c
weight: 1
total_weight: 1
match:
prefix: "/"
http_filters:
- name: envoy.filters.http.bandwidth_limit
typed_config:
"@type": type.googleapis.com/envoy.extensions.filters.http.bandwidth_limit.v3.BandwidthLimit
stat_prefix: bandwidth_limiter_default
enable_mode: REQUEST_AND_RESPONSE
limit_kbps: 1000
fill_interval: 0.1s
- name: envoy.filters.http.router
transport_socket:
name: envoy.transport_socket.tls
typed_config:
"@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.DownstreamTlsContext
common_tls_context:
tls_certificate_sds_secret_configs:
- name: wildcard-https-cert
sds_config:
resource_api_version: V3
ads: {}
secrets:
- name: wildcard-https-cert
ref:
name: wildcard-epick8sgw-net-tls
namespace: epic-epictest
nodeID: epic-epictest.ff2ac5e8-beed-4181-96cb-244dbd104ae9
serialization: yaml

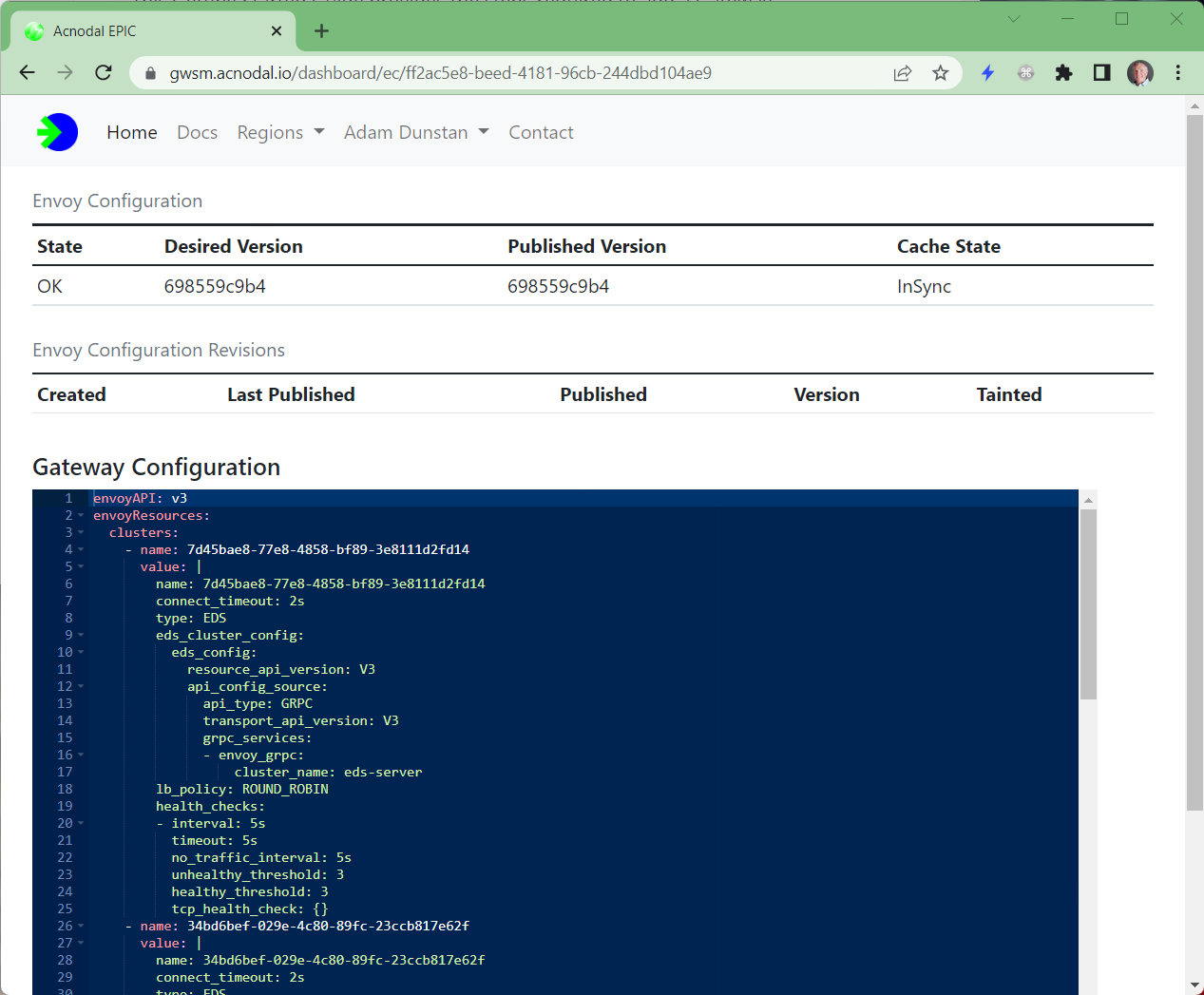

Viewing the Envoy Configuration resulting from Gateway Creation
All of the configuration information is visible via the Gateway Service Manager. (CLI interface will be available in the future). Using the Gateway Service Manager, it’s easy to inspect the resuting Envoy configuration from Gateway creation.
